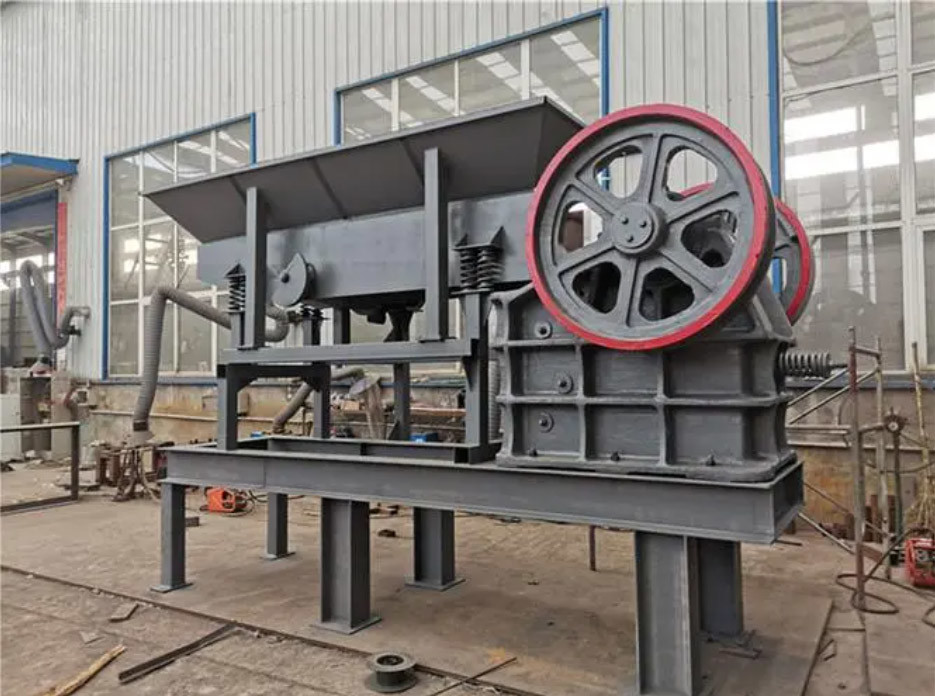

Lab Portable Mobile Small Jaw Crusher Tracked Diesel Jaw Stone Crusher

Working Principle of Jaw Crusher:
The core components of jaw crusher are movable jaw and fixed jaw. The movable jaw is a movable component that can move up and down, while the fixed jaw is a fixed component. When working, the material enters from the upper feed port of the crusher and falls into the crushing chamber between the movable jaw and the fixed jaw. The movable jaw moves by the eccentric shaft. As the eccentric shaft rotates, the movable jaw moves up and down under the fixed jaw.
When the movable jaw moves downward, the material in the crushing chamber slides downward due to gravity, forming a relatively large gap, during which the material can fall freely. When the movable jaw moves upward, the material is sandwiched between the movable jaw and the fixed jaw, subjected to huge extrusion pressure, and thus broken into small pieces. This process is an intermittent crushing process. The material is repeatedly squeezed, torn and impacted during the up and down movement of the movable jaw, and finally reaches the desired crushing particle size. The crushing ratio of jaw crusher is usually between 4:1 and 6:1, depending on the nature of the material and the design of the crusher. Its simple structure, convenient operation and low maintenance cost make it the preferred equipment in the field of ore crushing. In addition, the jaw crusher also has high production efficiency and strong adaptability, and can handle materials of different hardness and humidity.

Features:
1. TONTEN jaw crusher is equipped with a wedge block discharge port adjustment device, which makes the discharge port adjustment simpler, safer and faster, and saves time and effort in operation.
2. Jaw crusher parts are easy to replace and the maintenance workload is small. The adjustment range is large, which increases the flexibility of the equipment.
3. The large forging billet is processed into a heavy eccentric shaft, a high manganese steel jaw plate and a high-grade cast steel movable jaw assembly. The jaw crusher has a strong load-bearing capacity and high stability.

Jaw crusher machine specification:

TONTEN machinery is a well-known enterprise focusing on the production equipment. The main business covers garbage sorting and recycling equipment, mining equipment, kiln equipment, drying equipment, packaging equipment, and environmental purification equipment.

TONTEN Company committed to providing customers with high-quality and reliable products and services. Our company adheres to the business philosophy of "professionalism, innovation and service", continuously carries out technological innovation and process optimization to create the greatest value for customers.
